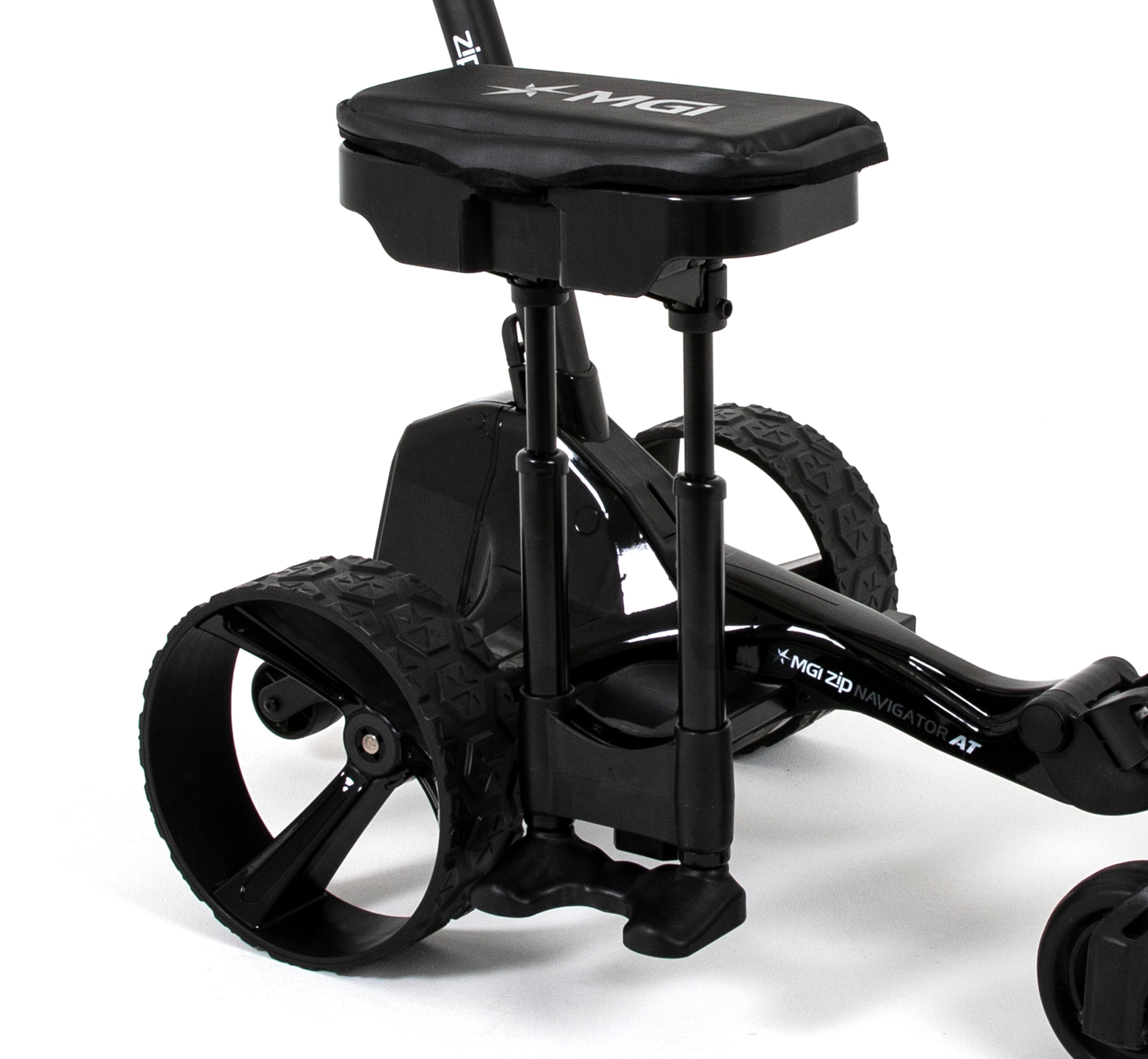

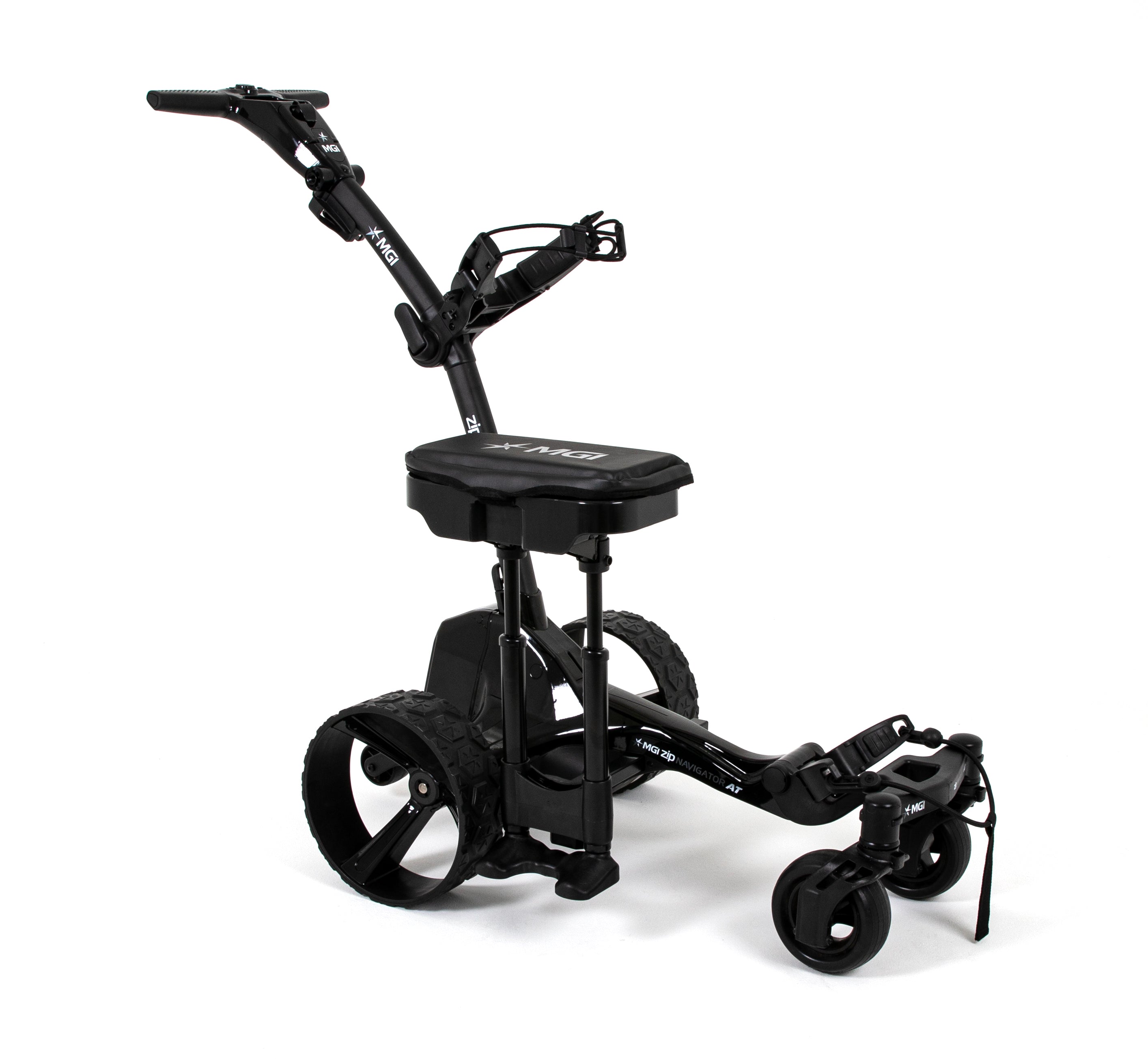

Seats
Padded seat for comfort with lined storage area for tees and balls. Includes Velcro lid for easy access and a bracket (Ai and Zip seats only) to attach to the base frame. *Quad seat bracket sold separately.
*Ensure you choose the correct Seat for your respective buggy.
- To locate the store nearest to you, click here
- To find our international distributors of MGI, click here
![Seats](http://mgigolf.com/cdn/shop/files/Untitleddesign_40.png?v=1716852108&width=1080)
SET UP INSTRUCTIONS
Ai Series:
1.Remove the 3 seat parts from the packaging
2.Open the seat compartment and remove the 2 bolts and nuts found inside
3.Insert the legs into the slots underneath the seat compartment
4.The seat's Velcro tab should be the same side as the feet if the seat assembly
5.Insert the bolt from the outside of the leg and tighten the nut on the inside of the lef using a Philips Head Screwdriver
6.Repeat for both sides
7.Undo the plastic screw on the trolley's undercarriage
8.Insert the bracket into the RIGHT HAND SIDE ONLY of the buggy
9.The bracket should protrude from both sides of the trolley evenly
10.The bracket sleeve should curve downwards towards the ground (NB: If you have installed the bracket upside down, the seat will not touch the ground when depressed.)
11.Tighten the screw on the buggies undercarriage to secure the bracket
12.Insert the seats plug, into the seat bracket socket.
13.Ensure the seat depresses correctly with your hand before sitting on it
14.The seats feet should sit flush on the ground
Ai Mounting Position: RIGHT hand side only
Zip Series:
1.Remove the 3 seat parts from the packaging
2.Open the seat compartment and remove the 2 bolts and nuts found inside
3.Insert the legs into the slots underneath the seat compartment
4.The seat's Velcro tab should be the same side as the feet if the seat assembly
5.Insert the bolt from the outside of the leg and tighten the nut on the inside of the lef using a Philips Head Screwdriver
6.Repeat for both sides
7.Release the bracket lever on the undercarriage of the trolley
8.Insert the bracket into the RIGHT HAND SIDE ONLY of the buggy
9.The bracket should protrude from both sides of the trolley evenly
10.The bracket sleeve should curve downwards towards the ground (NB: If you have installed the bracket upside down, the seat will not touch the ground when depressed.)
11.Re-engage the bracket lever under the trolley to secure seat bracket.
12.Insert the seats plug, into the seat bracket socket.
13.Ensure the seat depresses correctly with your hand before sitting on it
14.The seats feet should sit flush on the ground
