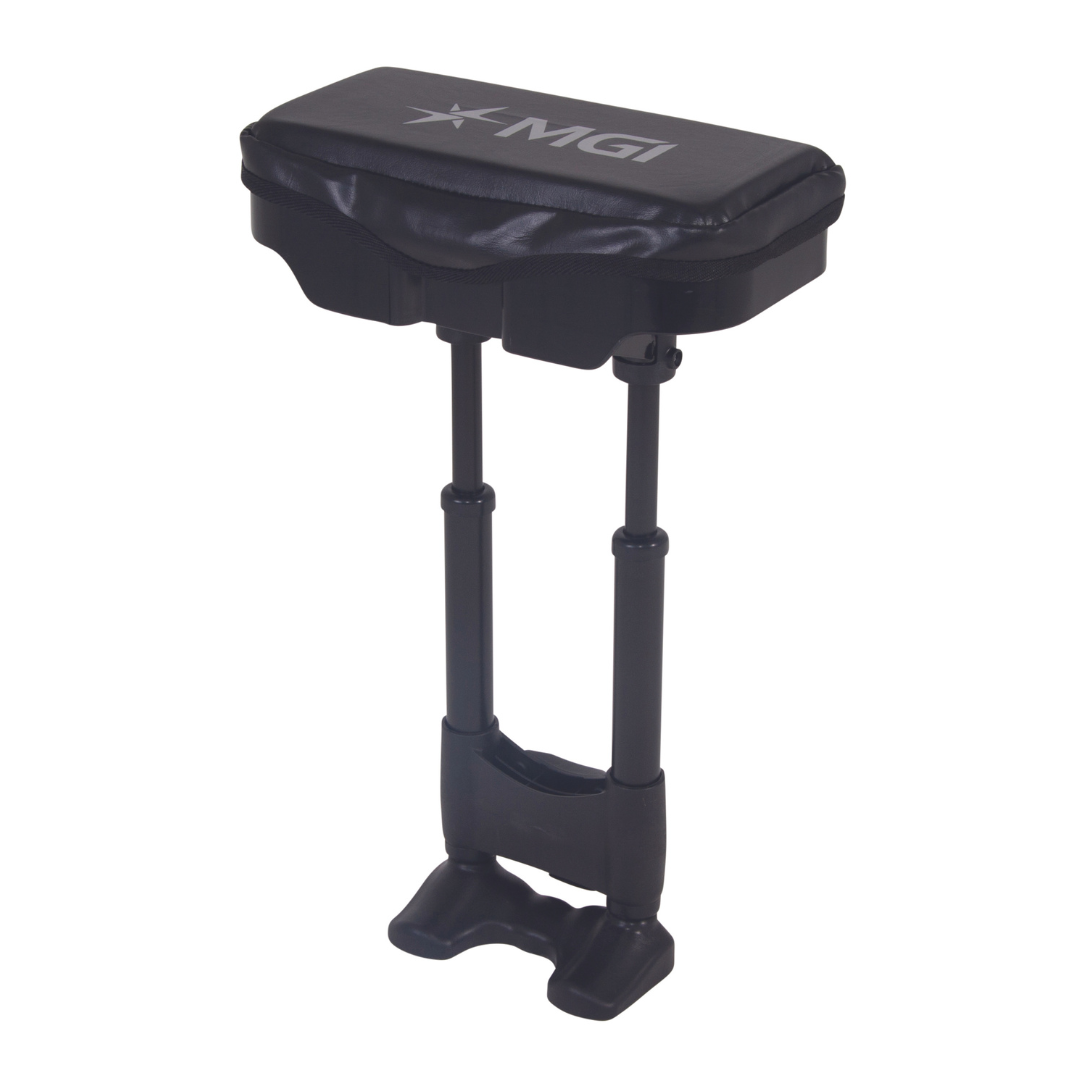

座位
带衬垫的座椅非常舒适，带有用于存放球座和球的带衬垫的储物区。包括方便取放球座和球的 Velcro 盖和用于固定到底座框架的支架（仅限 Ai 和 Zip 座椅）。*四人座椅支架单独出售。
*确保为您的越野车选择正确的座椅。
- To locate the store nearest to you, click here
- To find our international distributors of MGI, click here
SET UP INSTRUCTIONS
Ai Series:
1.Remove the 3 seat parts from the packaging
2.Open the seat compartment and remove the 2 bolts and nuts found inside
3.Insert the legs into the slots underneath the seat compartment
4.The seat's Velcro tab should be the same side as the feet if the seat assembly
5.Insert the bolt from the outside of the leg and tighten the nut on the inside of the lef using a Philips Head Screwdriver
6.Repeat for both sides
7.Undo the plastic screw on the trolley's undercarriage

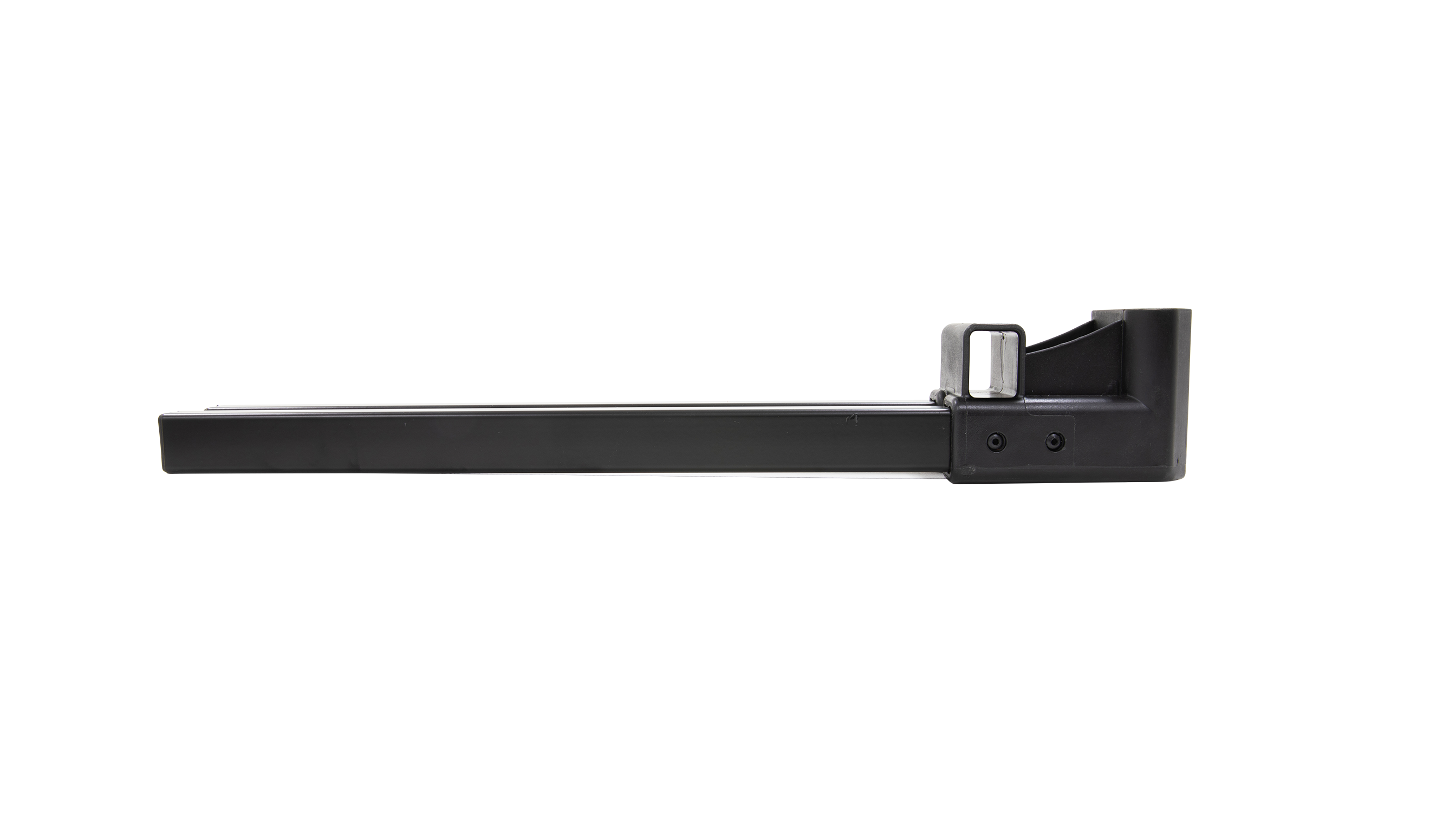

8.Insert the bracket into the RIGHT HAND SIDE ONLY of the buggy
9.The bracket should protrude from both sides of the trolley evenly
10.The bracket sleeve should curve downwards towards the ground (NB: If you have installed the bracket upside down, the seat will not touch the ground when depressed.)
11.Tighten the screw on the buggies undercarriage to secure the bracket
12.Insert the seats plug, into the seat bracket socket.
13.Ensure the seat depresses correctly with your hand before sitting on it
14.The seats feet should sit flush on the ground
Ai Mounting Position: RIGHT hand side only
Zip Series:
1.Remove the 3 seat parts from the packaging
2.Open the seat compartment and remove the 2 bolts and nuts found inside
3.Insert the legs into the slots underneath the seat compartment
4.The seat's Velcro tab should be the same side as the feet if the seat assembly
5.Insert the bolt from the outside of the leg and tighten the nut on the inside of the lef using a Philips Head Screwdriver
6.Repeat for both sides
7.Release the bracket lever on the undercarriage of the trolley
8.Insert the bracket into the RIGHT HAND SIDE ONLY of the buggy
9.The bracket should protrude from both sides of the trolley evenly
10.The bracket sleeve should curve downwards towards the ground (NB: If you have installed the bracket upside down, the seat will not touch the ground when depressed.)
11.Re-engage the bracket lever under the trolley to secure seat bracket.
12.Insert the seats plug, into the seat bracket socket.
13.Ensure the seat depresses correctly with your hand before sitting on it
14.The seats feet should sit flush on the ground
